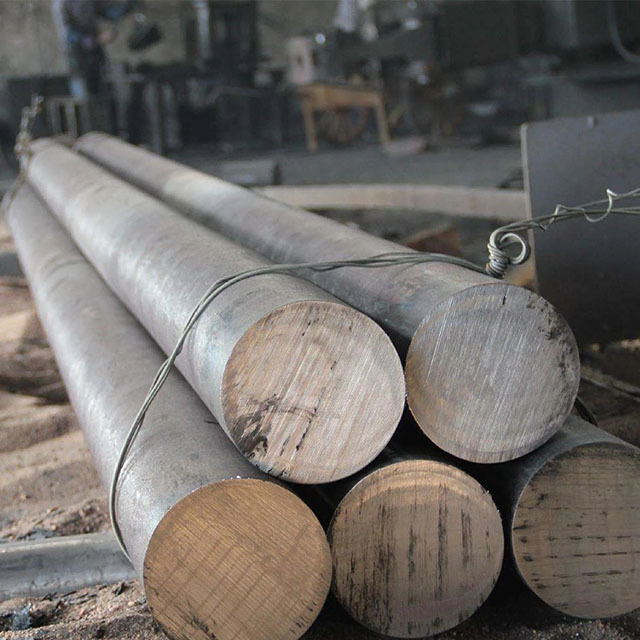

A36 Round Steel Bar
Classification :
PRODUCT DETAILS
A36 is a carbon structural steel whose chemical composition and mechanical properties strictly conform to American ASTM standards. A36 steel bar mainly consists of iron, carbon, silicon, manganese, phosphorus, sulfur and other elements. Iron constitutes more than 99% of the entire chemical composition. Its carbon content proportion is relatively high, around 0.2%, ensuring that the steel has a certain hardness and toughness. The addition of silicon, manganese and other elements enhances the strength and toughness of steel. Phosphorus and sulfur are low so that the steel bar has good welding performance and corrosion resistance. A36 steel bar is used for welded, bolted or riveted construction of bridges and buildings, as well as for general structural purposes. Due to its lowest yield point, A36 can be used to design lighter-weight structures and equipment, and provide good weldability.
|
Product Name |
Carbon Steel Bar |
| Diameter | 5.0mm-800mm |
| Length | 5800,6000 or customized |
|
Material |
S235JR,S275JR,S355JRS355K2,A36,SS400,Q235,Q355,C45,ST37,ST52,4140,4130,4330,etc |
|
Surface |
Black skin，Bright，etc |
|
Technique |
Hot rolling, Cold drawing, Hot forging |
|
Application |
Widely used in machinery manufacturing, building structures, automobile manufacturing, chemical industry, shipbuilding, etc. |
|
Standard |
GB,GOST,ASTM,AISI,JIS,BS,DIN,EN |
|
Delivery time |
Within 7-15 workdays after receiving deposit or L/C |
|
Export packing |
Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
|
Payment |
T/T L/C, Western Union etc. |
Chemical Composition
|
C |
Cu |
Fe |
Mn |
P |
Si |
S |
|
0.25-0.290 |
0.20 |
98.0 |
1.03 |
0.040 |
0.280 |
0.050 |
Mechanical Properties
|
A36 |
Limit Tensile Strength |
Tensile Strength, Yield Strength |
Elongation at Break (Unit: 200mm) |
Elongation at Break (Unit: 50mm) |
Modulus of Elasticity |
Bulk Modulus (Typical for Steel) |
Poisson's Ratio |
Shear Modulus |
|
Metric |
400-550 MPa |
250 MPa |
20.0 % |
23.0 % |
200 GPa |
140 GPa |
0.260 |
79.3 GPa |
|
Imperial |
58000-79800 psi |
36300 psi |
20.0 % |
23.0 % |
29000 ksi |
20300 ksi |
0.260 |
11500 ksi |
Physical Performance
|
Physical Performance |
Metric |
Imperial |
|
Density |
7.85 g/cm3 |
0.284 lb/in3 |
Scope of Application
Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.
Equivalent Material
|
National Standard GB |
European Standard EN |
American Standard ASTM |
German Standard DIN,WNr |
Japanese Standard JIS |
French Standard AFNOR |
British Standard BS |
Canada HG |
|
Q235B |
S235JR |
A283C |
St37-2 |
SM400A |
E24-2 |
40A/40B |
230G |
|
Italy UNI |
India IS |
Switzerland SS |
Australia ONORM |
Norway NS |
Spain UNE |
International Standards ISO |
Portugal NP |
|
Fe360B |
IS2062 |
1311/1312 |
RSt360B |
NS12123 |
AE235B-FN |
E235B/Fe360B |

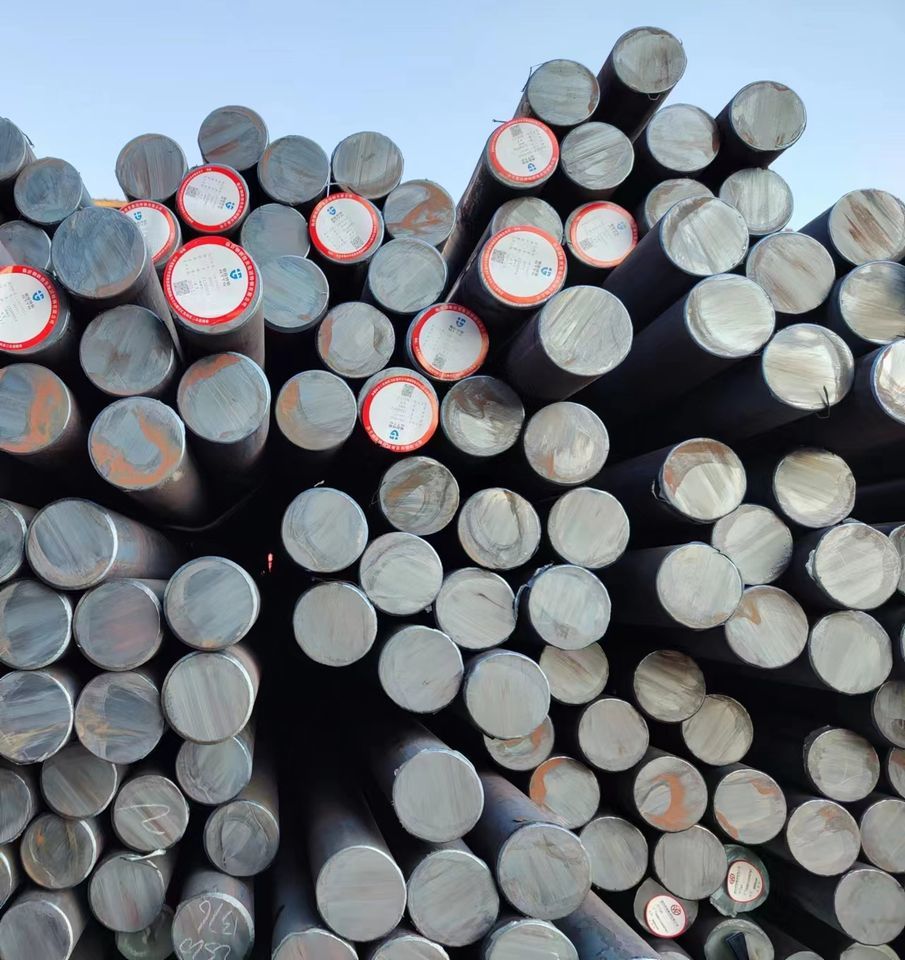

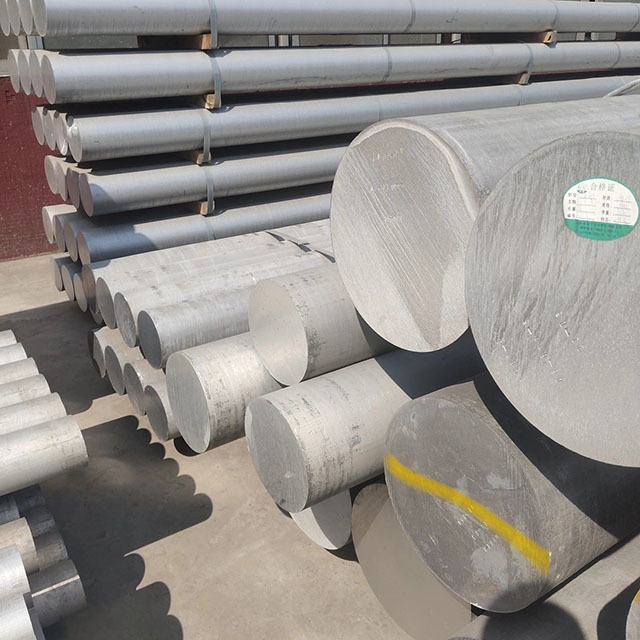

Warehouse storage
